| Drive Bays Configuration | 12-Bay |
|---|---|
| CPU/Processor Model Number | Intel Xeon D-1521 – Quad-core 2.4 GHz (up to 2.7 GHz) x86_64 |
| Drive Type Support | 2.5" dual-port SAS SSD, 2.5" dual-port SAS HDD, 3.5" dual-port SAS HDD |
| System Memory | 16 GB DDR4 ECC UDIMM (8 GB per controller) |
| Memory Module Pre-installed | 16 GB (8 GB x 2) |
| Total Memory Slots | 8 (4 per controller) |
| Maximum Memory Capacity | 128 GB (16 GB x 4 per controller) |
| Network Type | 4 x RJ-45 1GbE (2 per controller), 2 x RJ-45 10GbE (1 per controller) |
| Expansion Port | 2 (1 per controller) |
| Expansion Port Type | Mini-SAS HD |
| Warranty | 5-Year |
| Type | Rackmount |
| PCIe Expansion | 2 x Gen3 x8 slot (x8 link) - (1 per controller) |
| Form Factor | 2U |
| Redundant Power Supply | Yes |
| CPU Brand | INTEL |
| CPU Type | 2x Xeon |

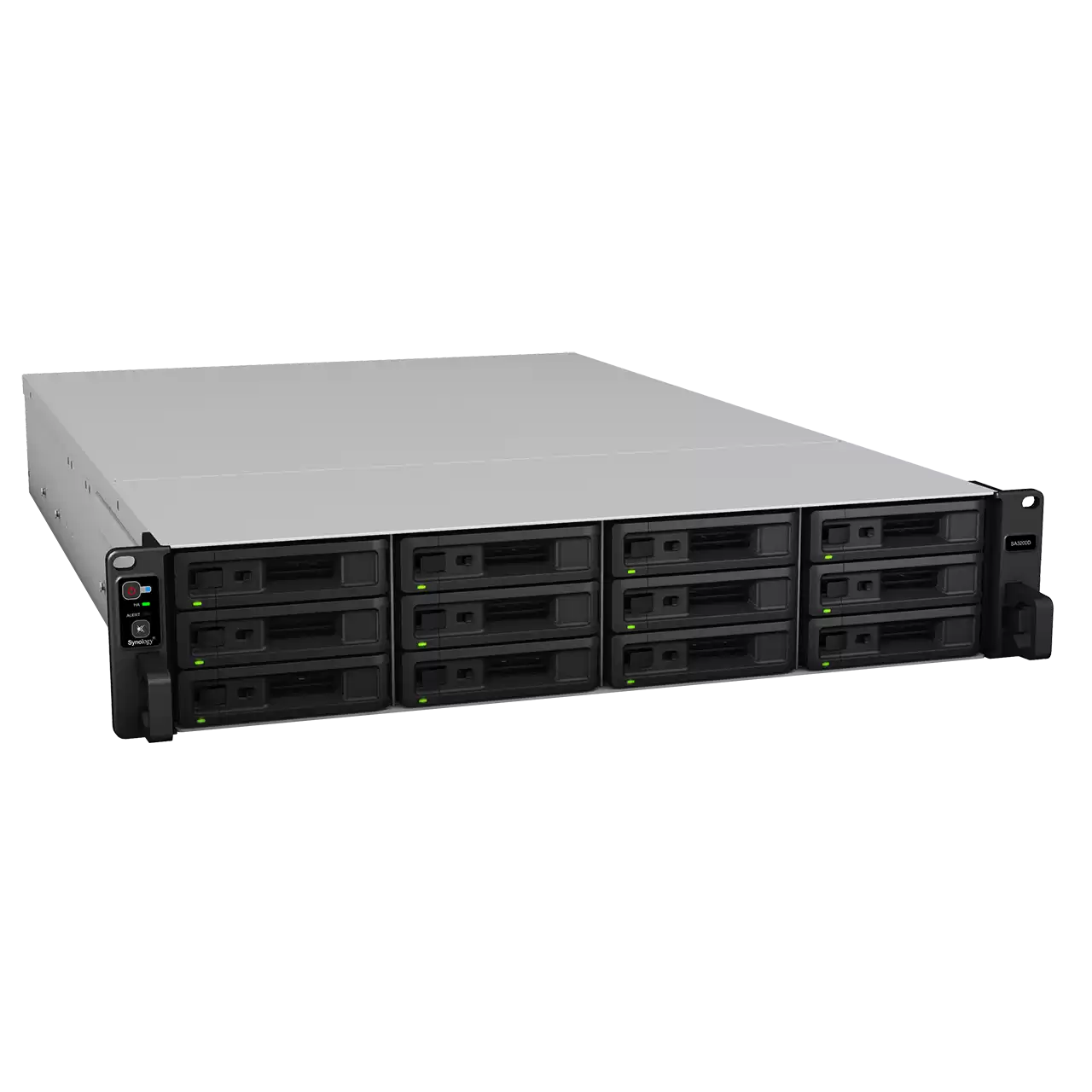

Synology NAS Rack 12 bay Dual controller, 5 years
